Switchboard Warning Signs Brisbane: 7 Signs You Need an Upgrade in 2026
WARNING SIGNS SCORECARD
Run through the 7 signs below and count how many your Brisbane switchboard ticks.
1 sign: plan an upgrade in the next 12 months. 2 to 3 signs: plan in the next 3 months. 4 or more signs: book an assessment now.
Most Brisbane homes built before 2000 still have their original switchboard. Some are fine. Most are tired. A few are genuinely dangerous. The hard part is knowing the difference without a sparky in your driveway. This guide gives you the seven warning signs SEQ Sparky uses on every Brisbane switchboard assessment, with real 2026 prices and what each fix actually looks like.
Sign 1: Ceramic or porcelain fuses
Risk level: HIGH. Pre-1980 install, no earth leakage protection, degraded by Brisbane humidity.
Open the meter box. If you can see white ceramic or brown porcelain fuses, your board was installed before 1980. These rewireable fuses do not protect against earth leakage, cannot be reset without rewiring and often have wire ratings that no longer match the cable they protect. Common across Tarragindi, Annerley, Yeronga and Greenslopes Queenslanders that often need full home rewiring alongside the board upgrade.
Fix: Modern RCBO board with sealed circuit breakers. Real 2026 SEQ Sparky pricing for a full Brisbane switchboard upgrade sits at $1,800 to $3,200 fitted.
Sign 2: Wooden or asbestos backing panel
Risk level: MEDIUM until disturbed. Asbestos is stable while untouched but hazardous during any upgrade work.
Look at the panel behind the fuses and main switch. Wooden boards predate 1960 and are past safe service life. Black or grey cement-style panels with a small white ASBESTOS label indicate a 1950 to 1985 install. Common in Mount Gravatt, Carindale, Coorparoo and Holland Park homes.
Fix: Licensed asbestos removal with Class A PPE plus full board upgrade. Two certificates issued (asbestos disposal plus Electrical Safety Certificate). Adds $400 to $800 on top of the standard upgrade price.
Sign 3: Breakers trip when two appliances run together
Risk level: MEDIUM. Supply under-sized for modern household load.
Modern Brisbane homes pull 60 to 100 amps single-phase between 5pm and 9pm. If your main switch trips when aircon and kettle run together, your supply is under-sized. Sometimes the fix is upgrading the main switch to 100 amp. Sometimes the answer is going three-phase.
Fix: Main switch upgrade or single-to-three-phase conversion. Real 2026 cost $1,800 to $6,500 depending on scope.
Sign 4: Burning plastic smell near the meter box
EMERGENCY. Active fault. Call an emergency Brisbane electrician immediately.

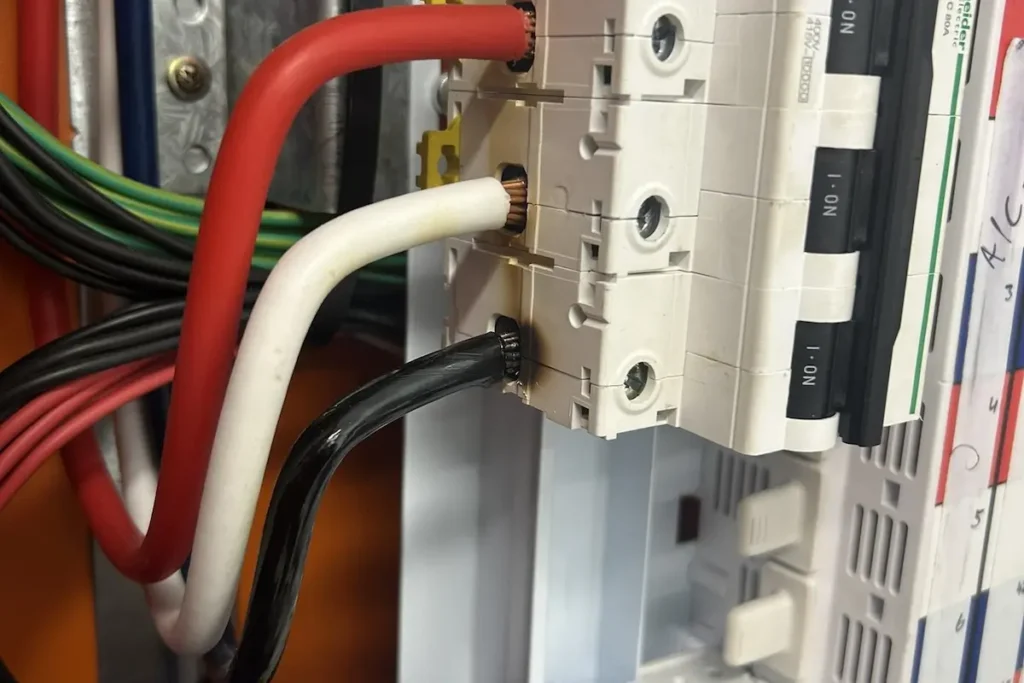

Any smell of burning plastic, scorched insulation or warm electrical equipment near your meter box means the board has an active fault. Common causes are loose neutral terminations heating up over years, failed circuit breakers, water ingress on a corroded busbar or rodent damage to insulation. Do not turn the main switch off unless instructed by a licensed electrician because that can sometimes worsen a thermal fault by trapping heat.
Fix: Emergency callout and full assessment. Real 2026 SEQ Sparky after-hours callout $220 plus GST on weekday evenings, $275 on weekends.
Sign 5: Missing or single safety switch
Risk level: HIGH. Non-compliant with Queensland Electrical Safety Regulation 2013.
The Queensland Electrical Safety Regulation 2013 requires safety switches on every power, lighting, air-conditioning, oven and hot water circuit. Zero safety switches = pre-1991 board. One large safety switch protecting everything = 1991 to 2007 board. Modern standard is RCBO protection on every circuit so a fault in the kitchen only trips the kitchen.
Fix: Single RCBO swap $250 to $450 fitted. Full board upgrade $1,800 to $3,200 fitted.
Sign 6: Rust, water marks or warped enclosure
Risk level: MEDIUM. Water ingress shortens component life and risks arc faults.
Look at the meter box from outside. Rust on the cabinet, brown water staining, warping where the door does not close cleanly, condensation marks. Brisbane storms in May and October drive rain into worn meter box seals. Water in the meter box is one of the most common causes of fault tripping in early winter.
Fix: New seals and weatherproofing if minor, or full enclosure replacement if severe. $185 inspection, repair quoted on site.
Sign 7: Board is full message from a solar or EV installer
Common Brisbane situation. Capacity bottleneck blocking solar, EV charger or new aircon.
You want rooftop solar, a battery, an EV charger or a new aircon circuit. The installer opens your board, sighs and tells you it is full. Either no spare DIN rail space or the supply is not big enough to add load. Either way, the fix is the same: a switchboard upgrade unlocks capacity for whatever comes next.
Fix: Full board upgrade with extra capacity reserved for future loads. Real 2026 cost $1,800 to $3,200 fitted.

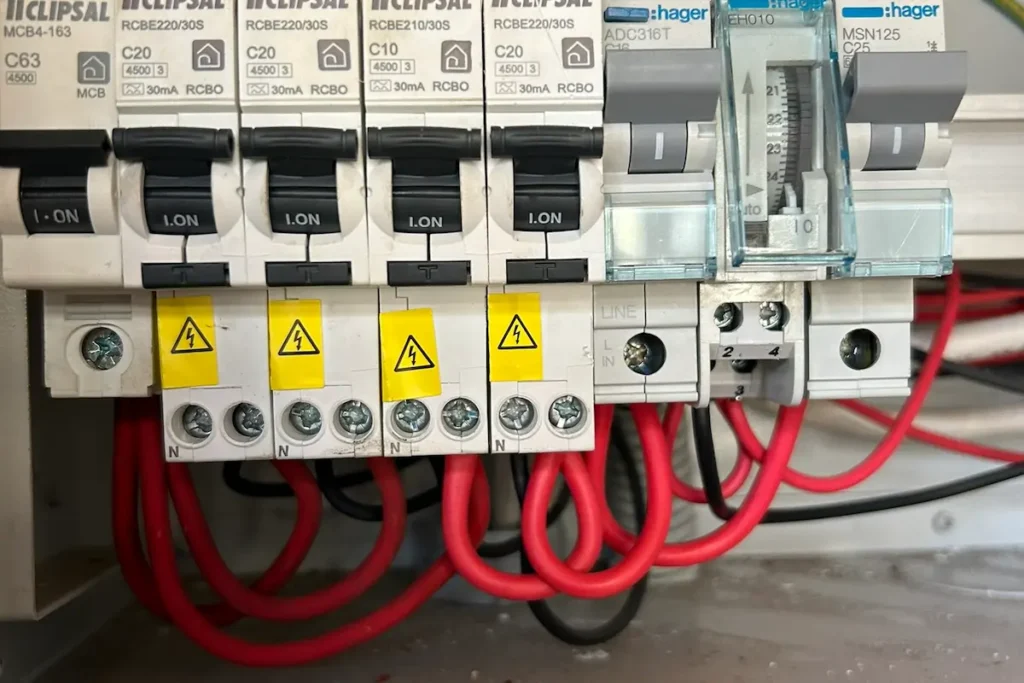

What a SEQ Sparky upgrade looks like
- New IP54 enclosure rated for Brisbane humidity
- 100 amp main switch sized for modern household load
- RCBO protection on every circuit
- Surge protection device for storm season
- Machine-printed circuit labels in plain English
- Written circuit schedule with brand, model and ratings
- Energex EWR lodged before work, ESC lodged within 48 hours after
- Written workmanship warranty
Read our guide on how long a Brisbane switchboard upgrade takes for the full timeline.
Switchboard warning signs FAQ
How do I know if my Brisbane switchboard is safe in 2026?
Look for the seven warning signs in this guide. If any one is present, get a free assessment from a licensed Brisbane electrician. The big red flags are ceramic fuses, asbestos backing, repeated tripping, burning plastic smell and missing safety switches.
How much does a switchboard upgrade cost in Brisbane?
Single-phase residential RCBO board upgrade is $1,800 to $3,200 fitted. Three-phase residential or small commercial is $3,500 to $6,500 fitted. Both include the Energex EWR, all RCBOs, surge protection and Electrical Safety Certificate.
Is a switchboard upgrade covered by home insurance?
The upgrade itself is not insured, but having a compliant switchboard with current Electrical Safety Certificate is what keeps your home insurance valid after any electrical fire. Insurers can deny claims when the install does not meet AS NZS 3000 or the Queensland Electrical Safety Regulation 2013.
Can I just replace the fuses with breakers in my old Brisbane board?
Generally no. Older Brisbane boards have wooden, asbestos or bakelite backing panels not designed for modern DIN rail mounting. Supply size, neutral and earth bonding rarely meet current standards. A piecemeal fuse-to-breaker swap is rarely cheaper than a full upgrade once compliance costs are factored in.
What suburbs does SEQ Sparky cover for Brisbane switchboard upgrades?
Brisbane Southside, Logan, Ipswich and Redlands. Regular suburbs include Tarragindi, Annerley, Yeronga, Greenslopes, Coorparoo, Mount Gravatt, Carindale, Holland Park, Sunnybank, Springwood, Loganholme, Mount Cotton and Cleveland.
Free Brisbane switchboard assessment
Send a photo of your switchboard through the website. Anthony will tell you straight up which warning signs are present, whether the board needs upgrading, just a service or is still fine. Fixed price quotes provided in writing valid for 30 days.
Standards and references
- Energex (Queensland network operator)
- WorkSafe Queensland (Electrical Safety Office)
- Standards Australia (AS NZS 3000 wiring rules)
About the author
Anthony Nuich is a Queensland licensed electrician (QLD Licence 90899, ABN 72 666 569 820) and owner of SEQ Sparky. Brisbane Southside based, on the tools every day across Logan, Redlands and Ipswich. SEQ Sparky has upgraded hundreds of residential and commercial switchboards across Brisbane since 2018.
